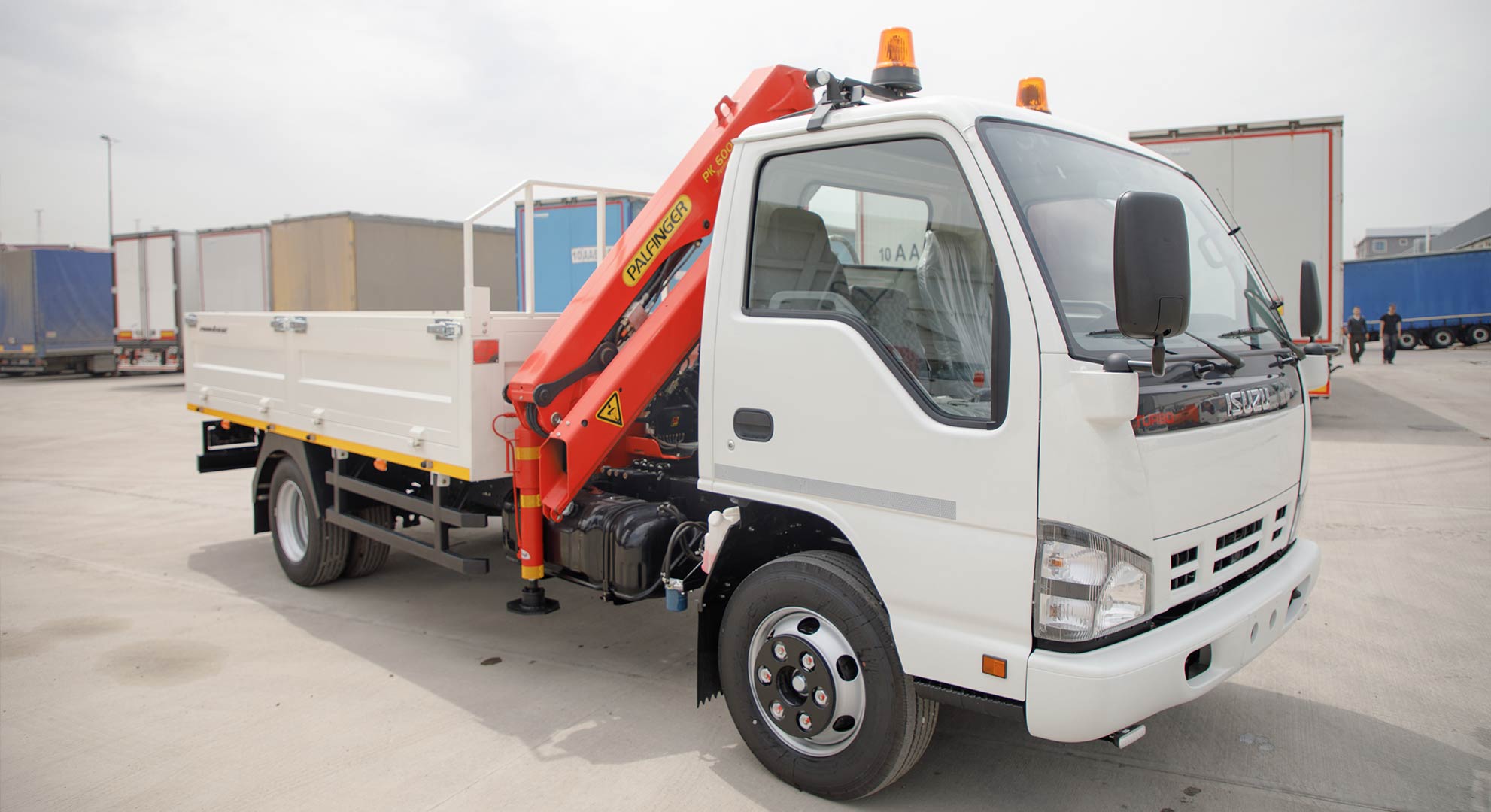

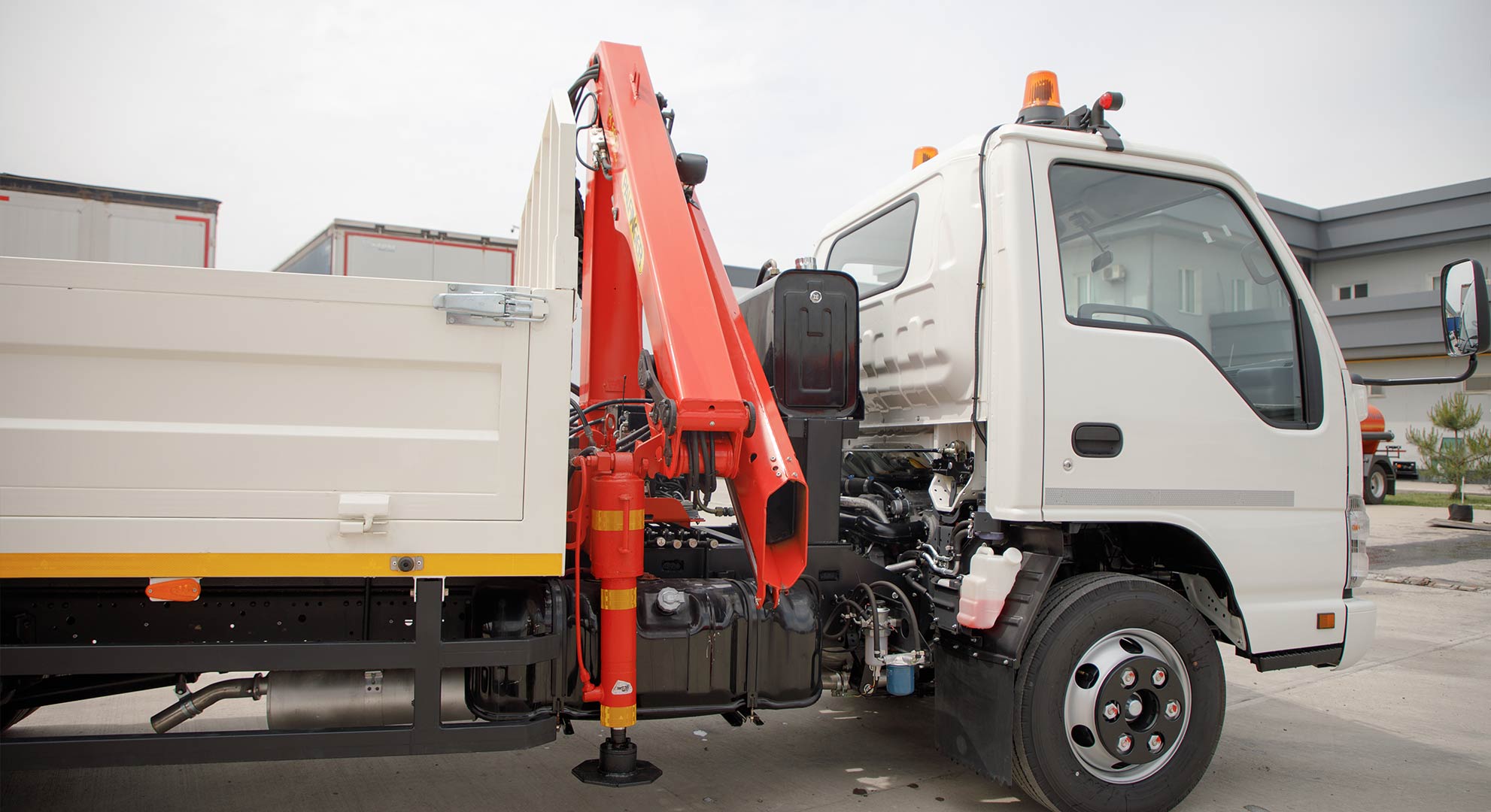

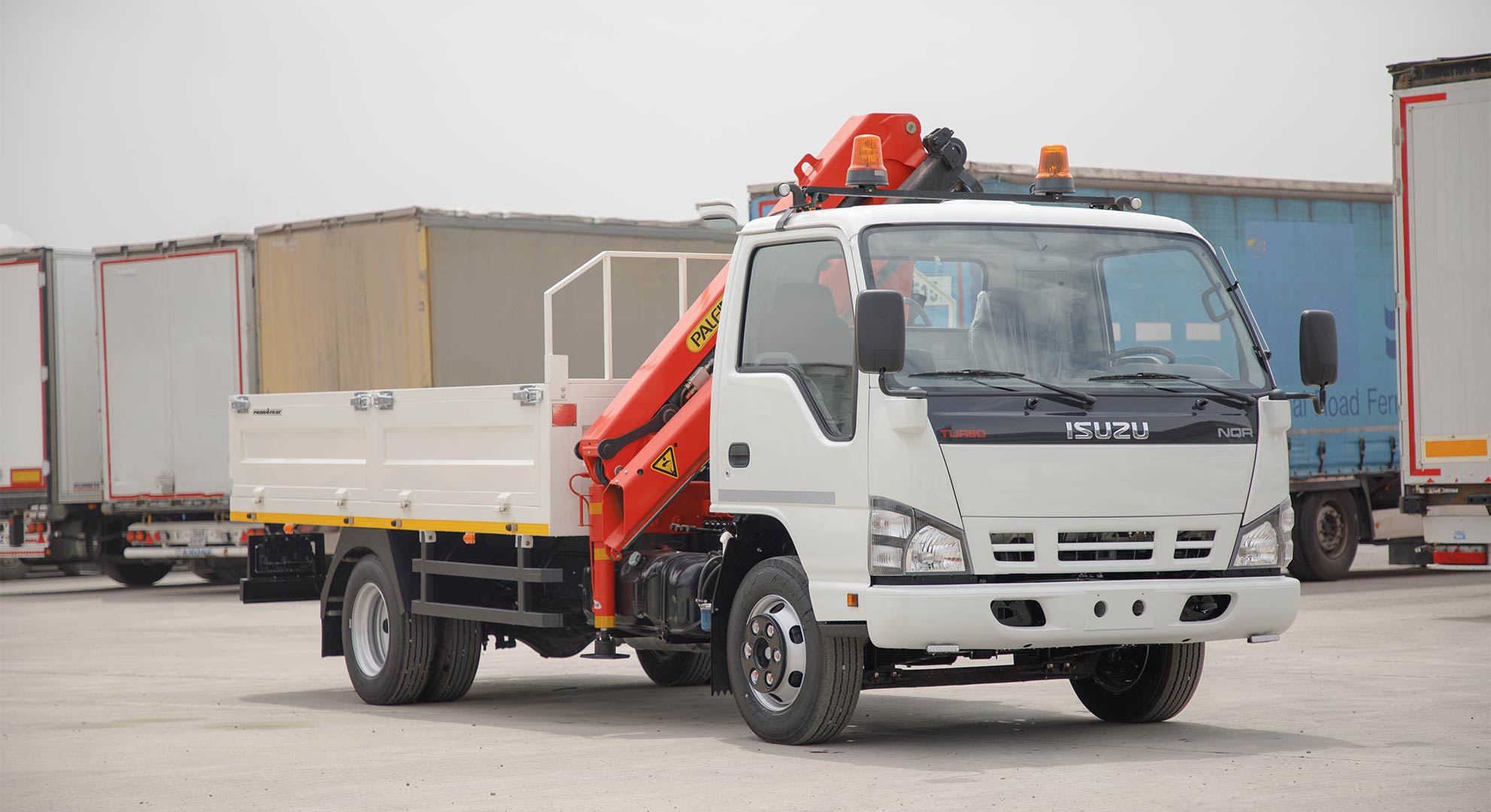

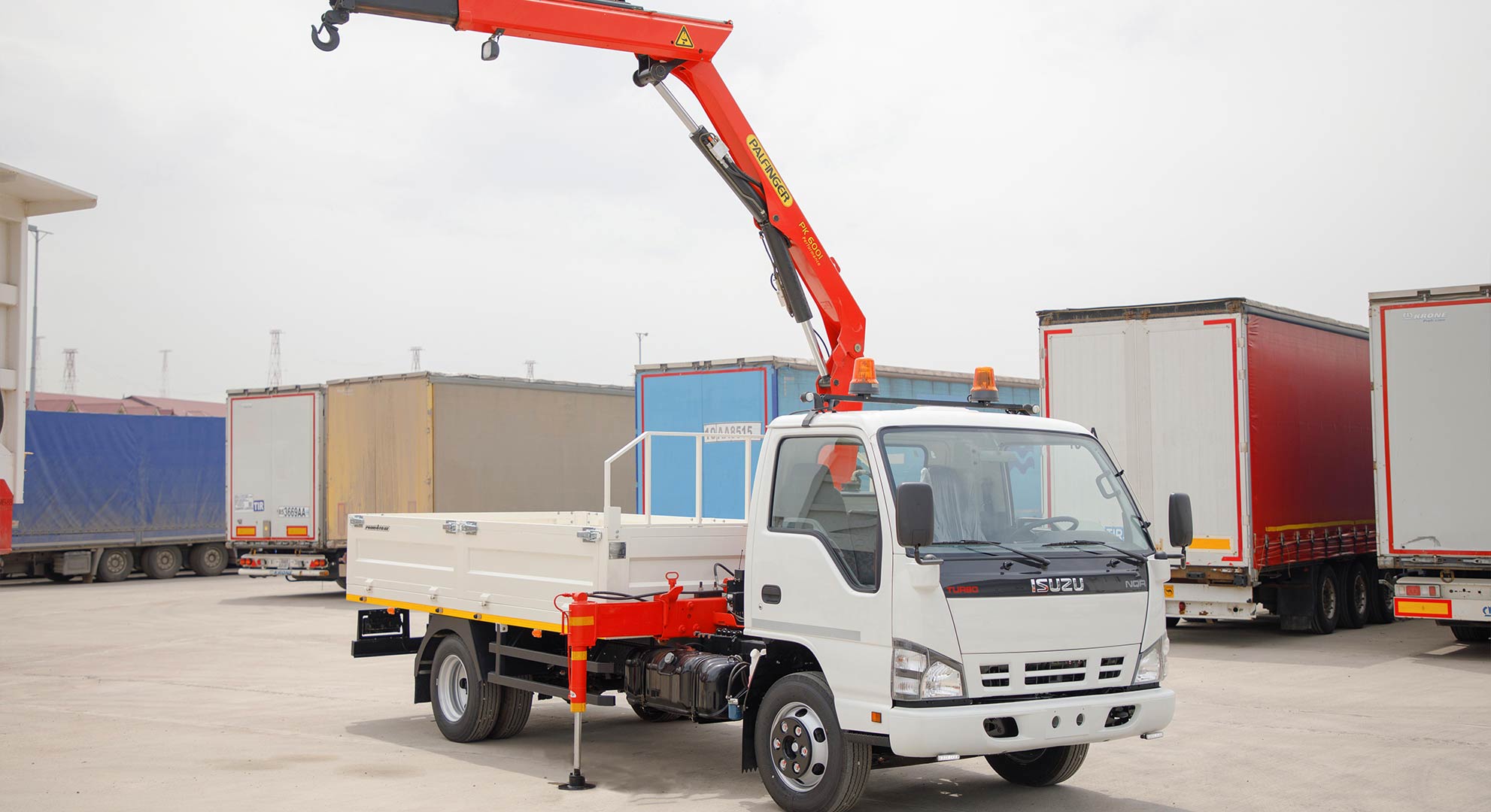

Crane manipulator with board - 3 tons.
Crane manipulator with board - 3 tons.
An established network of international suppliers-manufacturers of various equipment and an experienced team of production and technical specialists allow us to achieve the most optimal solutions for the production of non-standard types of equipment.
Specifications
N2
Vehicle category
4x2 / rear-wheel drive
Wheel formula / driving wheels
3 815
Base, mm
6 610 x 2 2100 x 2 250
Overall dimensions, mm (length/width/height)
3.2 tons
Carrying capacity of CMU
180
Boom rotation angle, degree
721
Own weight of CMU, kg
300
Working pressure, max, barr
3.81 x 2.34 x 0.55
Overall dimensions of the onboard platform, m (inside) (length / width / height)
4500
Carrying capacity of the vehicle no more than, kg
180
Ground clearance, no more than, mm
ISUZU 4HG1
Engine
ISUZU MYY5T
Variable Gear Box
yes
Availability of ABS
Diesel / 100
Fuel type / Fuel tank volume, l
18±2
Fuel consumption per 100 km, l
